CABS-flex server
Download models Download Cα trajectory
Status: Done started: 2018-Apr-19 11:54:27 UTC
Project NamenapB
SequenceQPPMIPHSVE GYQVTTNTNR CLQCHGVESY RTTGAPRISP THFMDSDGKV GAEVAPRRYF CLQCHV
Secondary structure

CCCCCCCCCC CCCEECCEEC CHHHHCCCCH HHHCCCCCCC CCCCCCCCCC CCCCCCCCCC CCCCCC

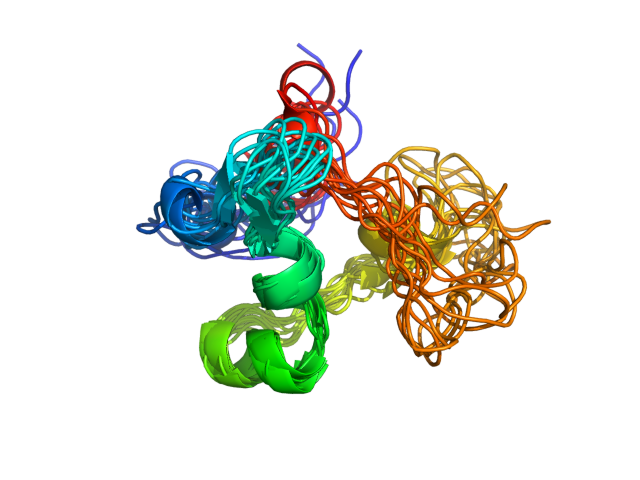

Movie from predicted structures
To download the movie, right click on the desired file format:
Estimated finish time2018-Apr-19 16:22 UTC
Project NamenapB
Clustering data
Cluster #123456789101112
Cluster density115.985.184.983.171.070.663.157.052.652.151.248.6
Cluster size289201220202147152155141140135108110
Average cluster RMSD2.52.42.62.42.12.22.52.52.72.62.12.3

Read about clustering method.

Cα RMSD & GDT_TS to the input structure
#123456789101112
RMSD 5.15 4.71 4.24 4.29 2.99 5.08 3.12 2.80 3.58 2.85 3.15 4.32
GDT_TS 0.47 0.50 0.53 0.52 0.62 0.53 0.62 0.63 0.55 0.64 0.60 0.53

The table contains RMSD and GDT_TS values (calculated on the Cα atoms) between the predicted models and the input structure. Note that GDT_TS metric is intended as a more accurate measurement than the more common RMSD.
Read more about the root-mean-square deviation (RMSD) measure
Read more about the global distance test (GDT, also written as GDT_TS to represent "total score") measure.

Cα RMSD between predicted models
#123456789101112
1 0.00 2.89 5.30 3.27 4.94 4.40 5.84 4.80 4.68 4.34 6.04 4.85
2 2.89 0.00 5.22 3.45 5.02 4.59 5.55 4.47 4.34 3.97 5.61 4.72
3 5.30 5.22 0.00 4.69 4.46 4.32 3.89 4.74 3.15 4.14 4.59 3.49
4 3.27 3.45 4.69 0.00 3.46 4.32 4.89 3.78 3.83 3.31 4.33 4.68
5 4.94 5.02 4.46 3.46 0.00 4.93 3.14 2.61 3.64 2.74 2.57 4.56
6 4.40 4.59 4.32 4.32 4.93 0.00 4.86 5.29 4.34 4.72 5.43 3.14
7 5.84 5.55 3.89 4.89 3.14 4.86 0.00 3.44 3.72 3.50 3.06 3.94
8 4.80 4.47 4.74 3.78 2.61 5.29 3.44 0.00 3.74 2.33 2.91 4.61
9 4.68 4.34 3.15 3.83 3.64 4.34 3.72 3.74 0.00 3.36 3.90 3.73
10 4.34 3.97 4.14 3.31 2.74 4.72 3.50 2.33 3.36 0.00 3.16 4.41
11 6.04 5.61 4.59 4.33 2.57 5.43 3.06 2.91 3.90 3.16 0.00 4.91
12 4.85 4.72 3.49 4.68 4.56 3.14 3.94 4.61 3.73 4.41 4.91 0.00

The table contains RMSD values (calculated on the Cα atoms) between the predicted models.
Read more about the root-mean-square deviation (RMSD) measure.

Cα GDT_TS between predicted models
#123456789101112
1 1.00 0.65 0.56 0.66 0.56 0.56 0.51 0.55 0.55 0.56 0.50 0.53
2 0.65 1.00 0.52 0.59 0.53 0.56 0.58 0.56 0.57 0.62 0.51 0.51
3 0.56 0.52 1.00 0.59 0.60 0.57 0.58 0.58 0.64 0.62 0.59 0.59
4 0.66 0.59 0.59 1.00 0.64 0.61 0.50 0.59 0.60 0.60 0.55 0.57
5 0.56 0.53 0.60 0.64 1.00 0.52 0.61 0.66 0.62 0.65 0.69 0.58
6 0.56 0.56 0.57 0.61 0.52 1.00 0.53 0.55 0.58 0.59 0.56 0.63
7 0.51 0.58 0.58 0.50 0.61 0.53 1.00 0.63 0.58 0.63 0.67 0.53
8 0.55 0.56 0.58 0.59 0.66 0.55 0.63 1.00 0.62 0.72 0.67 0.59
9 0.55 0.57 0.64 0.60 0.62 0.58 0.58 0.62 1.00 0.66 0.61 0.59
10 0.56 0.62 0.62 0.60 0.65 0.59 0.63 0.72 0.66 1.00 0.65 0.58
11 0.50 0.51 0.59 0.55 0.69 0.56 0.67 0.67 0.61 0.65 1.00 0.55
12 0.53 0.51 0.59 0.57 0.58 0.63 0.53 0.59 0.59 0.58 0.55 1.00

The table contains GDT_TS values (calculated on the Cα atoms) between the predicted models.
Read more about the global distance test (GDT, also written as GDT_TS to represent "total score") measure.
